Suitable for bottled water, widely used in the bottles packing on 0.2L-2L small scale bottles.
Capacity：24000BPH
Brand: DATONG– Automatic Filling Machine

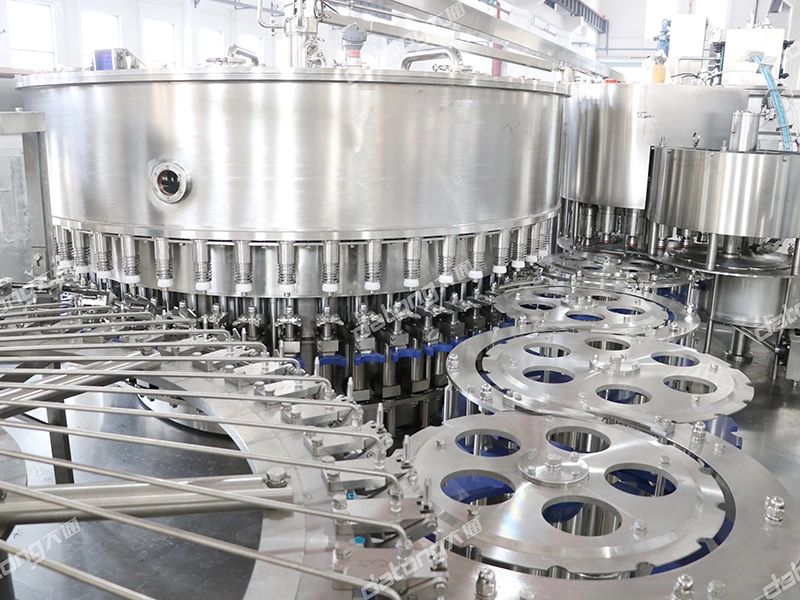

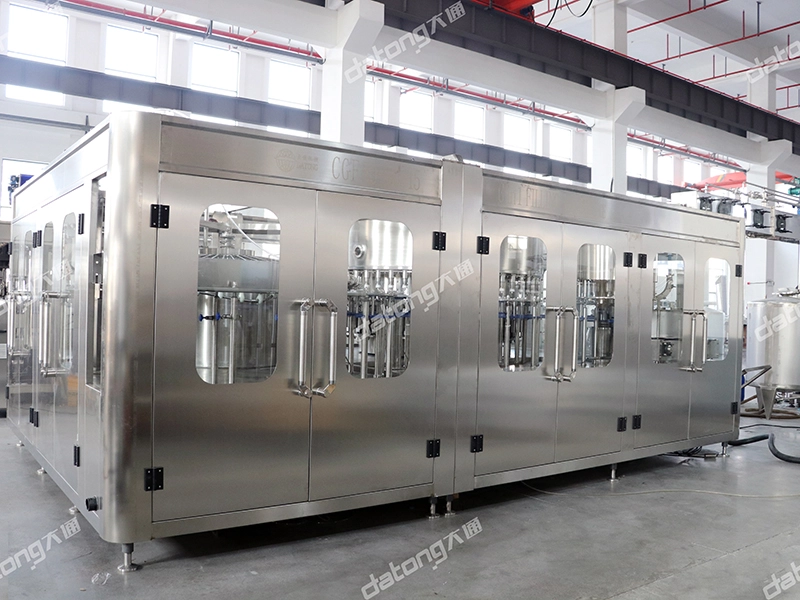

3 IN 1 Rinsing, Filling, Capping integration machine

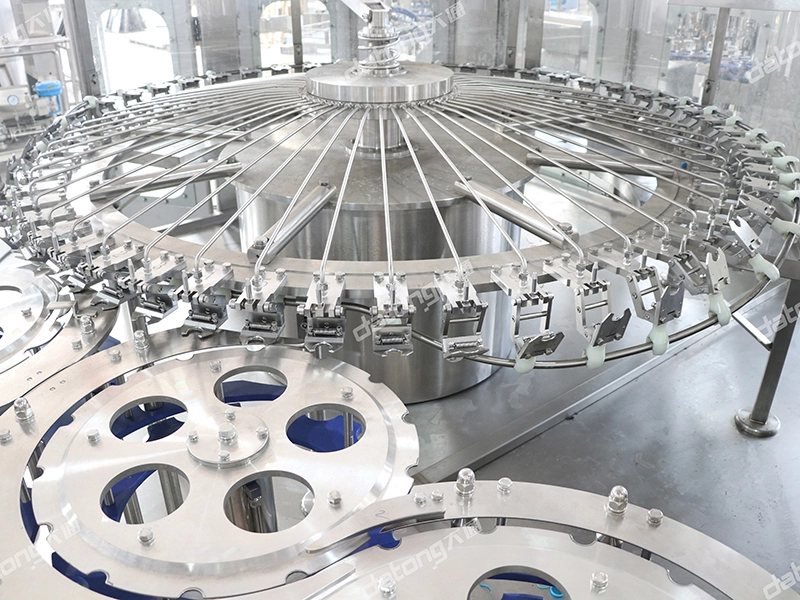

Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second contamination.

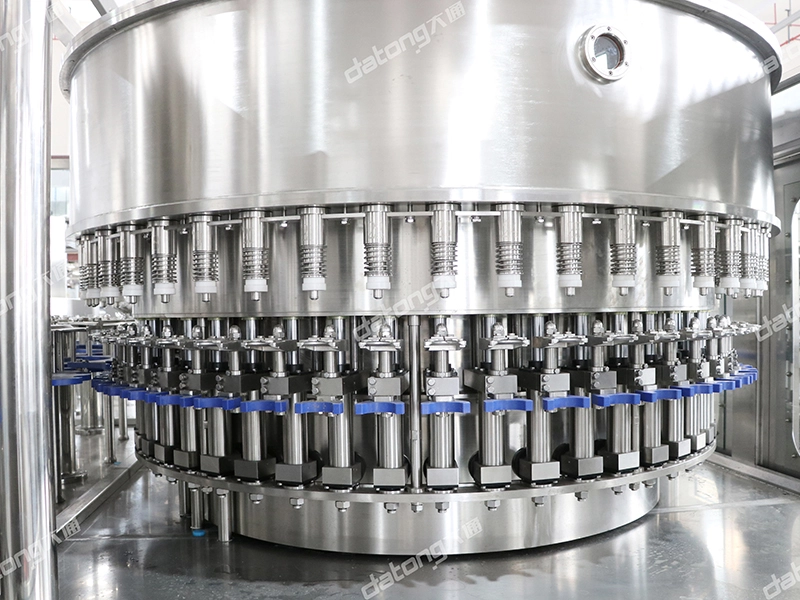

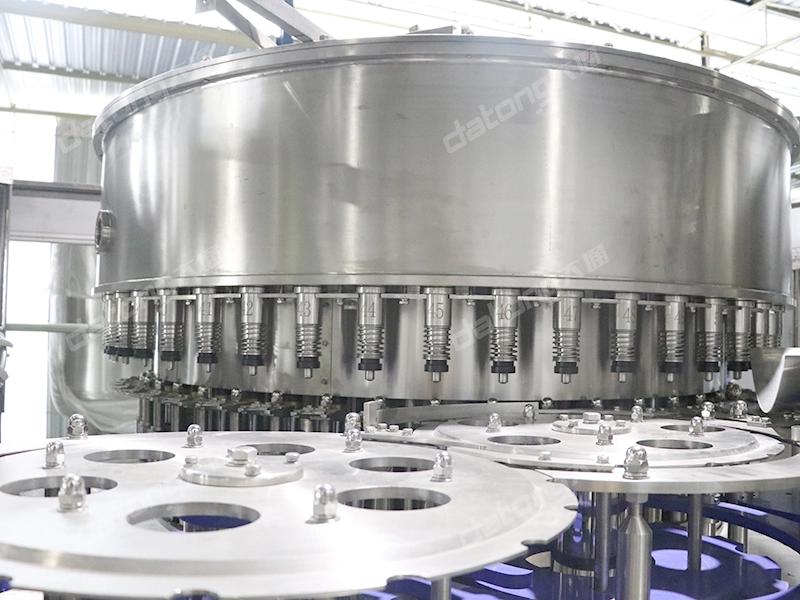

Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

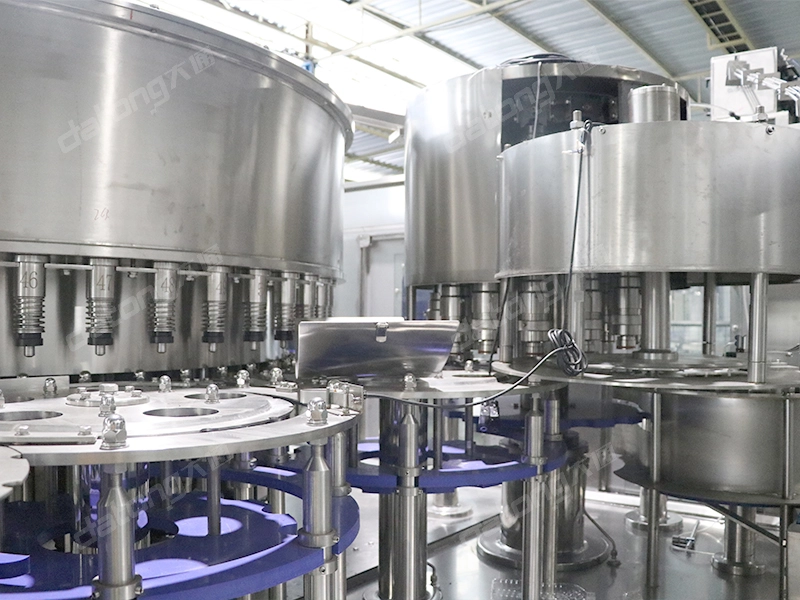

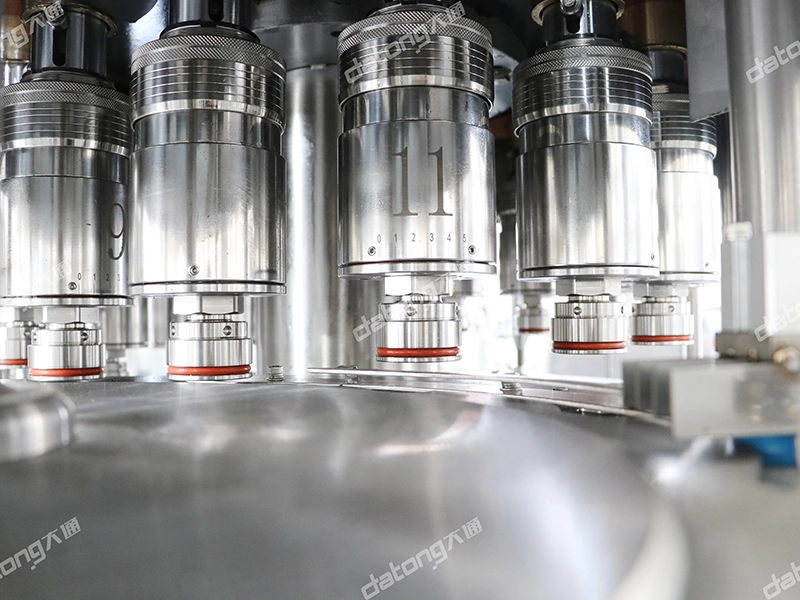

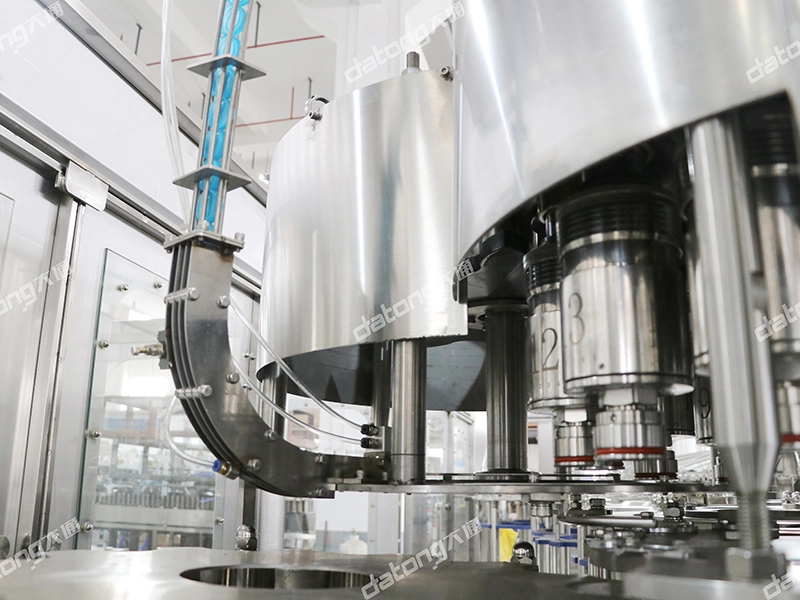

Screwing capper, cap sorter, falling cap guide.

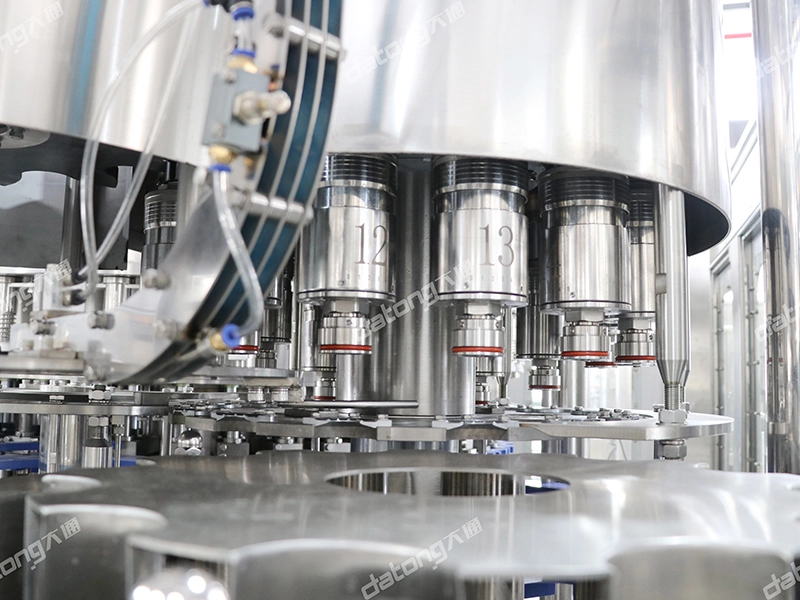

Capping head have itself scale. Easier adjust and count.
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml) (B/H) |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110 H=170 volume=330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |
