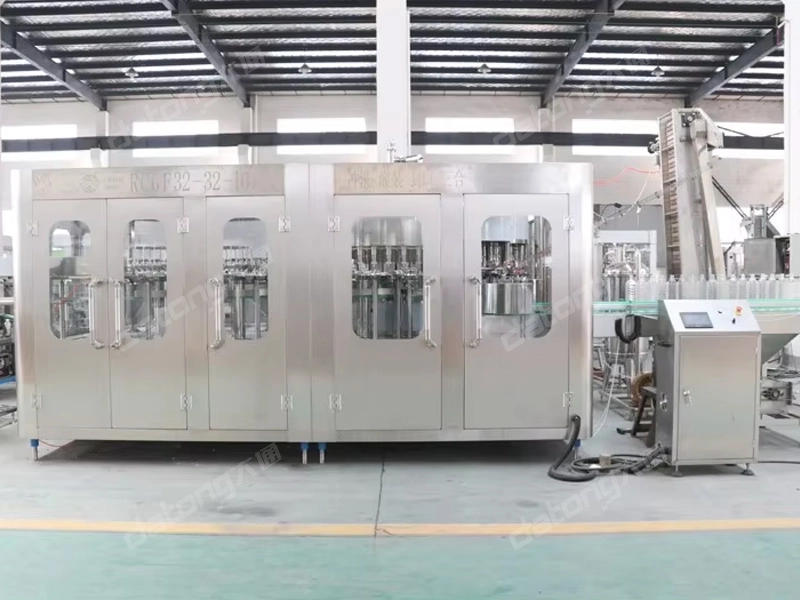

15000BPH RCGF32-32-10 Juice Filling Machine

bottling equipment for glass bottle. Standard type of RCGF series hot filling machine is “3-in-1”.aiming at special production condition,one disinfectant rinser can be increased to be 4-in-1 monobloc.the system gives full consideration for beverage’s characteristics(e.g.it is easy to have foaming for tea beverage and mixed juice.)and main technical requirement of hot filling.

Product Description

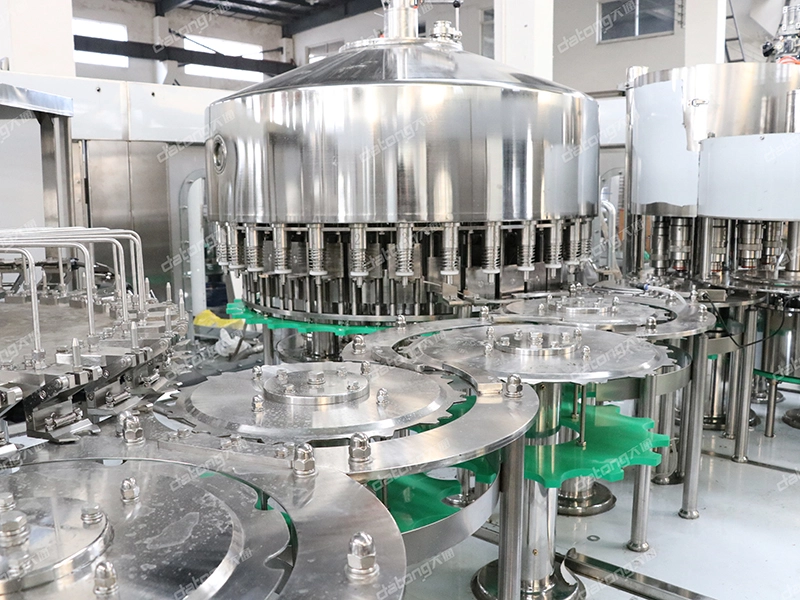

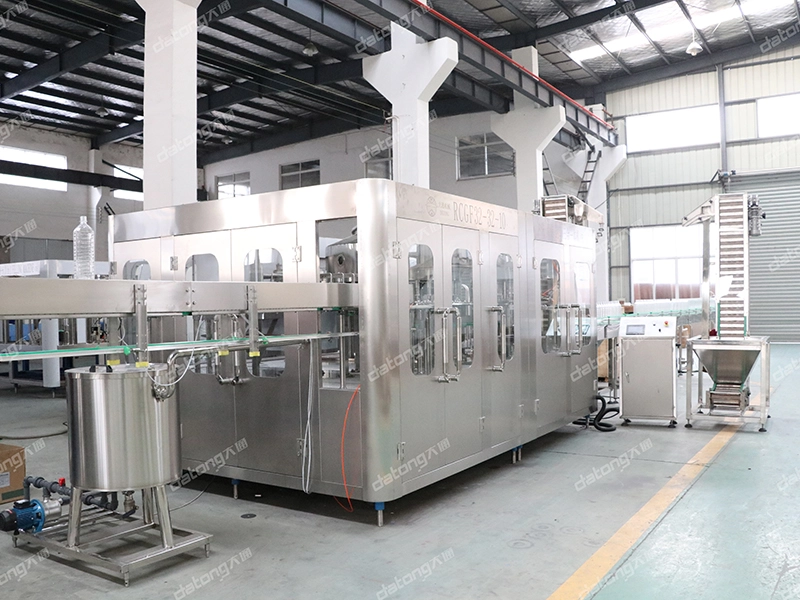

The RCGF series juice bottling machine incorporates washing,filling and capping into one and is a kind of full-automatic equipment .It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable. the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

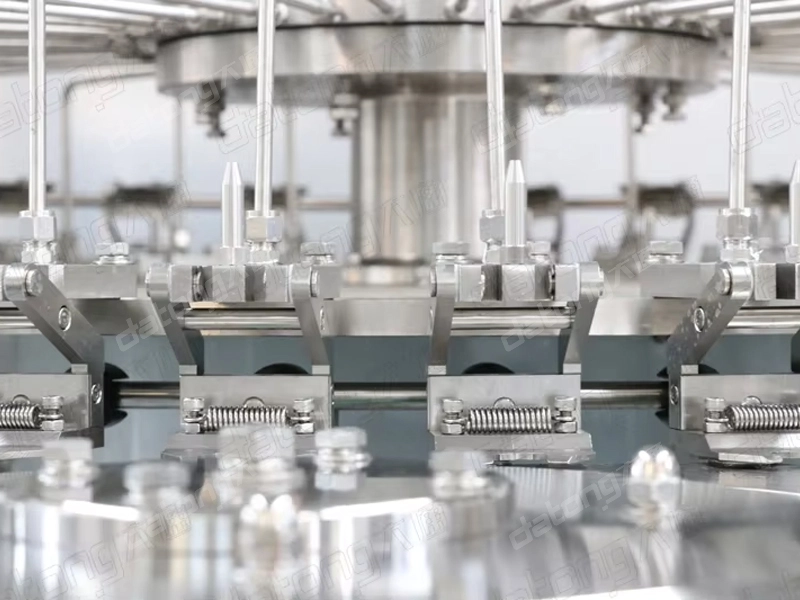

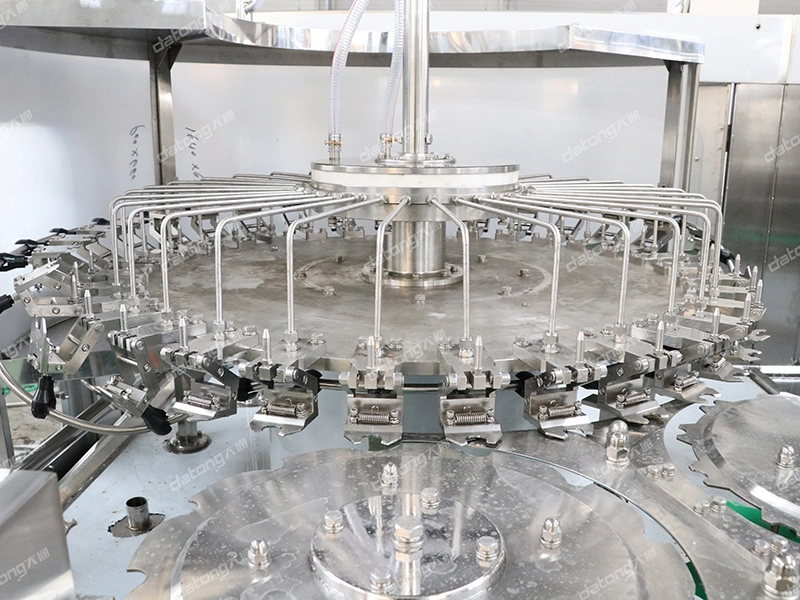

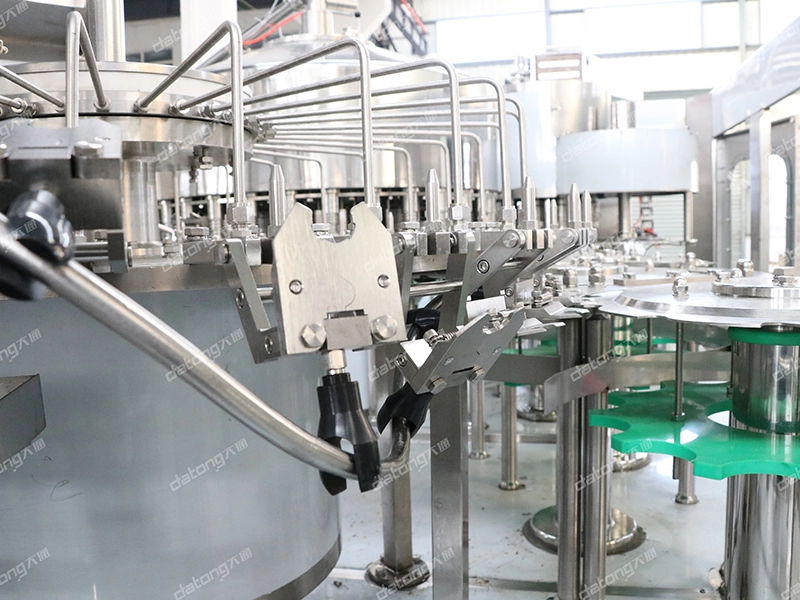

Washing part:

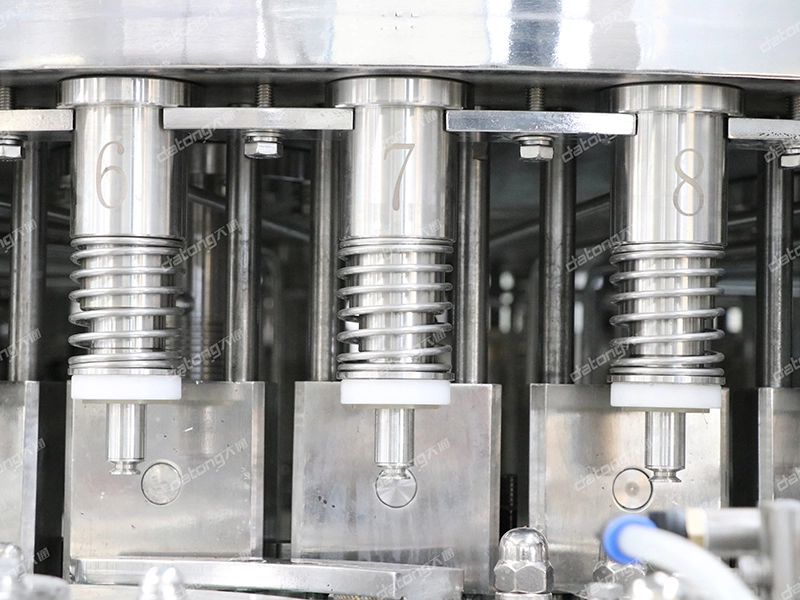

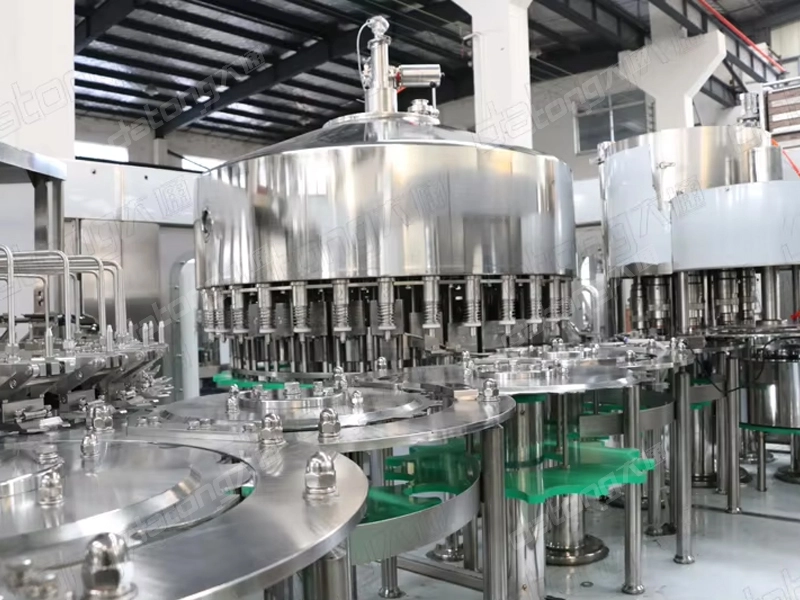

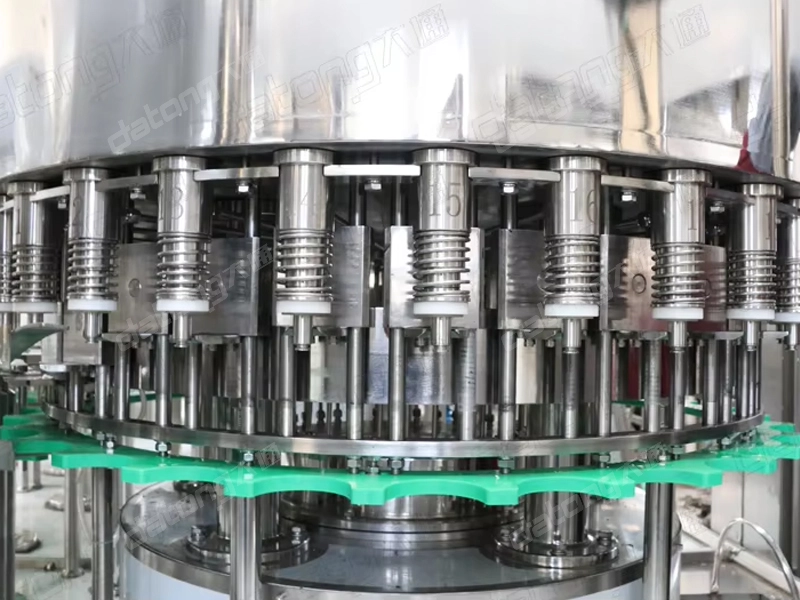

Filling part:

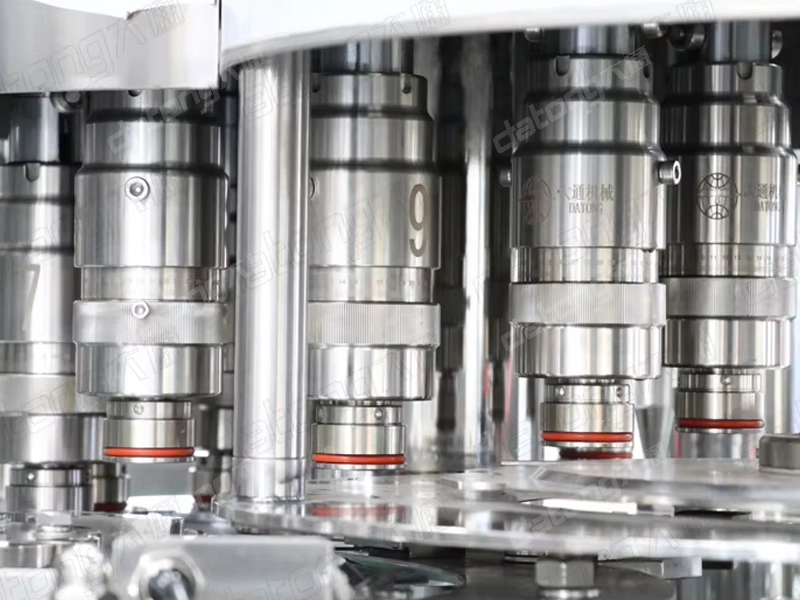

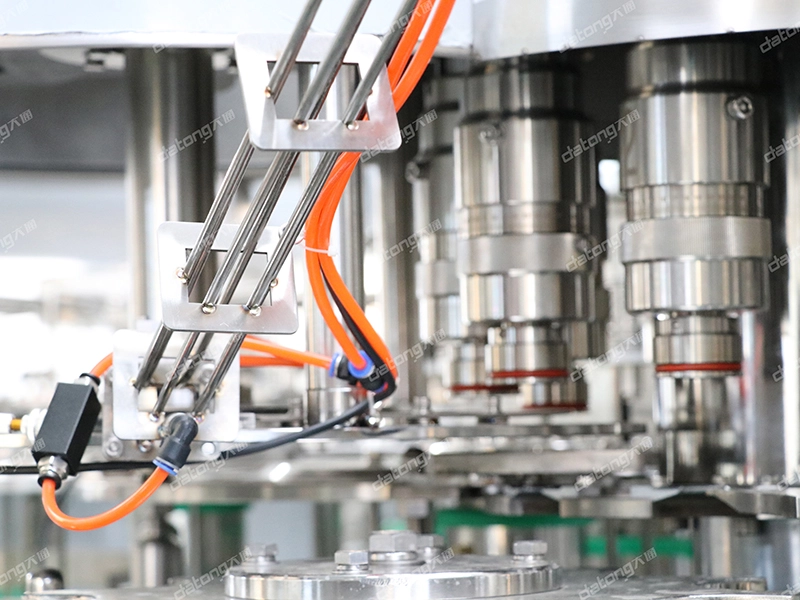

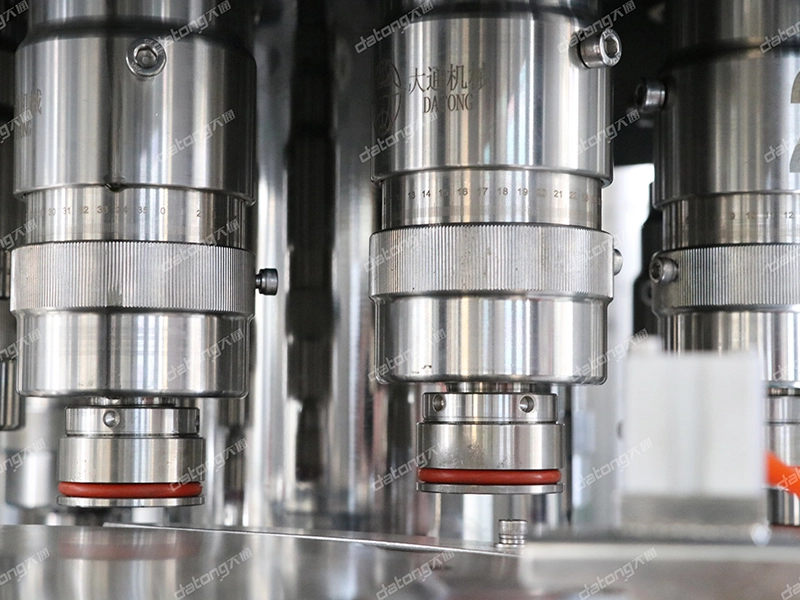

Capping part:

Video

15000BPH RCGF32-32-10 Juice Filling Machine

Specifications

Model RCGF14-12-5 RCGF16-16-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12 RCGF50-50-15 RCGF60-60-15
Production capacity(b/h) 2500 4000 6000 8000 13000 18000 22000 26000
Suitable bottle shape  circular or square
Bottle diameter(mm) Φ50-Φ95
Bottle height(mm) 150-310
Washing medium aseptic water
Total power(kw) 3 3.5 4 5.5 7.5 11 15 20
Weight(kg) 2200 2800 3000 4500 6000 9000 15000 18000
Overall dimensions(mm) 2050*1550*2200 2400*1750*2200 2550*1850*2200 3000*2150*2200 4200*2700*2400 4700*3200*2400 6500*3350*2400 7200*3650*2600

FAQ

15000BPH RCGF32-32-10 Juice Filling Machine

We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc

15000BPH RCGF32-32-10 Juice Filling Machine

2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !

15000BPH RCGF32-32-10 Juice Filling Machine

Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us!

15000BPH RCGF32-32-10 Juice Filling Machine

We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.

15000BPH RCGF32-32-10 Juice Filling Machine

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.
